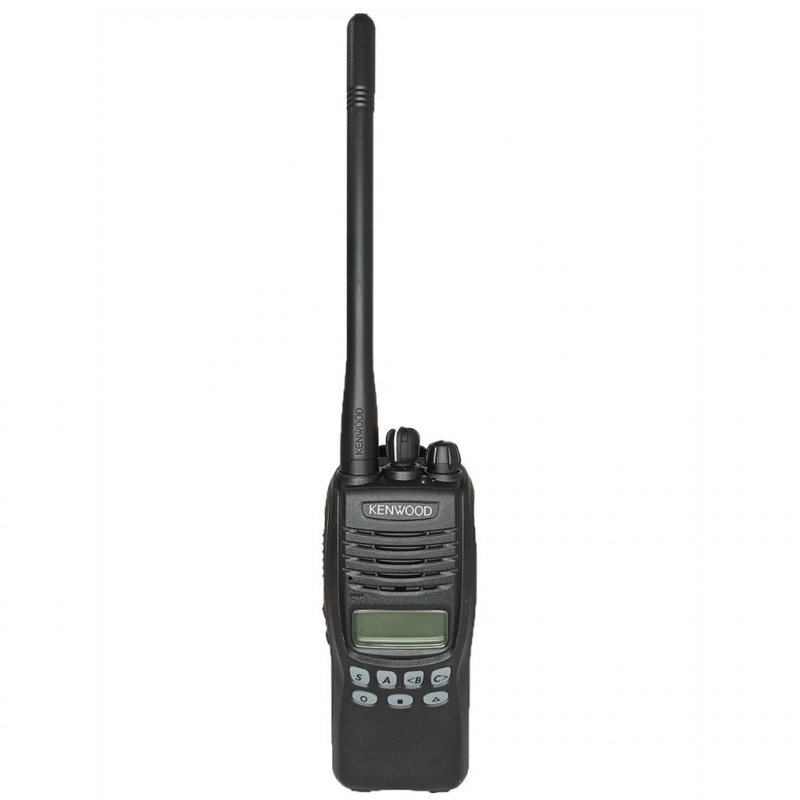

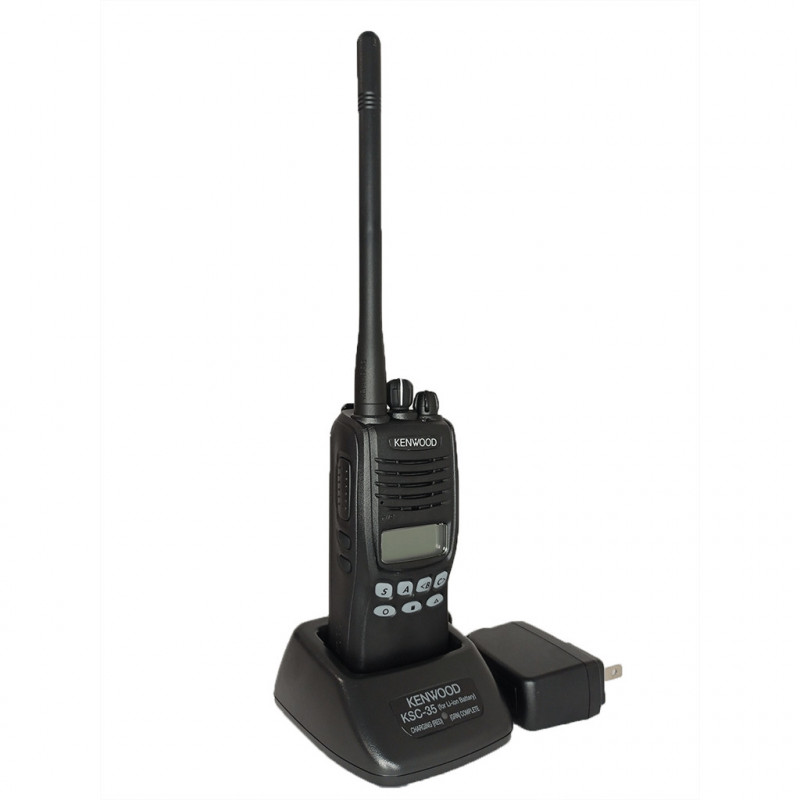

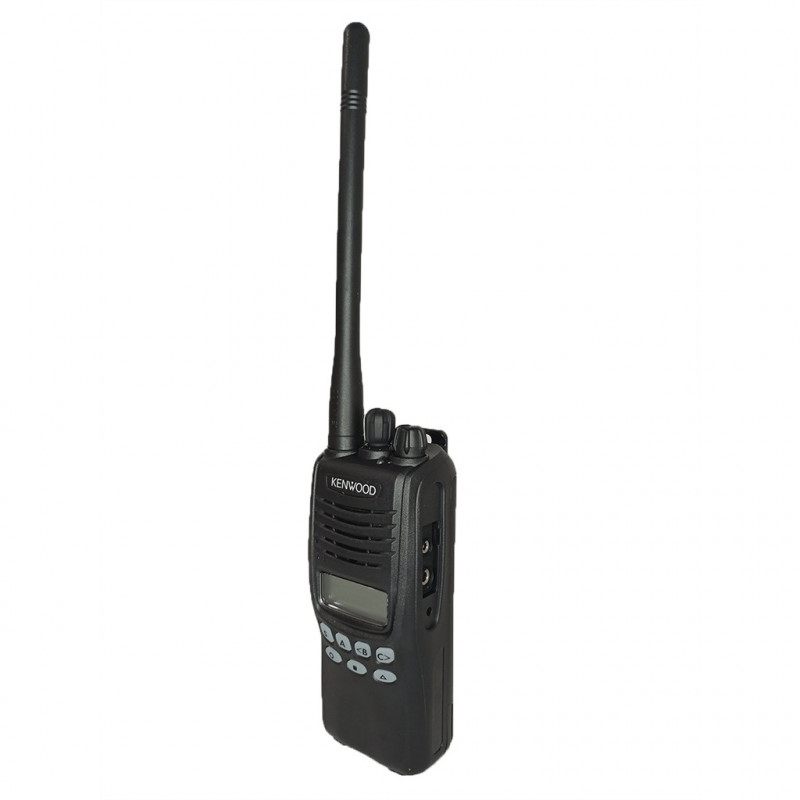

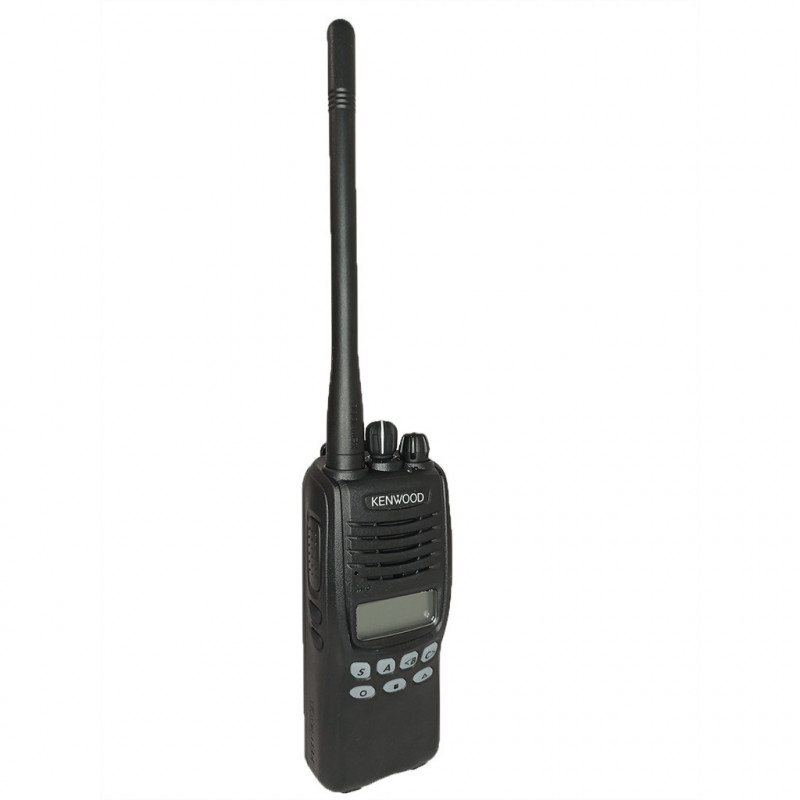

TK-2312 VHF Radio
Featured Features
- Frequency range: 136-174 MHz
- Output power 5 watts
- 128 Channels / 128 Zones
- Voice Encryptor Included
- QT, DQT, DTMF and 5-Tone Signaling
- FleetSync digital signage, PTT ID and Selective Calling
- MDC-1200 signaling
- PC programming
Política de seguridad (editar con el módulo Información de seguridad y confianza para el cliente)
Política de envío (editar con el módulo Información de seguridad y confianza para el cliente)
Política de devolución (editar con el módulo Información de seguridad y confianza para el cliente)
Featured Features
| Frequency range: 136-174 MHz |
| Output power 5 watts |
| 128 Channels / 128 Zones |
| Voice Encryptor Included |
| QT, DQT, DTMF and 5-Tone Signaling |
| FleetSync digital signage, PTT ID and Selective Calling |
| MDC-1200 signaling |
| PC programming |
Supplied accessories
| Belt clip | Yes, KBH-10 |
| Instruction manual | Yes, Spanish, English, German, French, Dutch, Italian, Turkish and Greek |
PMR general characteristics
FleetSync signaling specifications
| State of emergency | Yes |
| ANI Digital PTT ID | Yes |
| Selective call | Yes |
MDC1200 Signage Specifications
| Emergency Coding | Yes |
| PTT ID encoding | Yes |
| Radio Test Decoding | Yes |
| Lock / Unlock Decoding | Yes |
Options
| Choice of optional battery packs | Yes |
| Micro-Speaker with optional GPS | KMC-48GPS |
Applicable standards
| R & amp; TTE: EN300 086, 300 113, 300 219, 301 489 | Yes |
| EN60065, 60950-1, 60215 | Yes |
| Factory and location quality certification | ISO 9001. Made in Singapore |
| For use in the EU | Yes |
| IP54 | Yes |
| IP55 | Yes |
| Measurement - EIA Standards | Yes |
| Measurement - EN Standards | Yes |
| MIL-STD 810 C / D / E / F / G | Yes |
Technical Specifications
| Frequency range - Type E | 136-174 MHz |
| Number of channels | 128 |
| Number of Zones | 128 |
| Channel frequency spread | 38 MHz |
| Channel spacing | Wide: 25 kHz Med: 20 kHz Narrow: 12.5 kHz |
| Antenna impedance - 50 Ohm | Yes |
| Battery life | With KNB-45L: 12 hours With KNB-53N: 9 hours With KNB-29N: 10 hours - 5-5-90 cycle without battery saver (approx.) |
| Frequency Tolerance | ± 2,5 ppm (-30 ° C to + 60 ° C) |
| Operating temperature | -30 ° C to + 60 ° C |
| Operating voltage | 7.5 V DC ± 20% |
| Dimensions | With KNB-29N / 45L / 53N: 54 x 122 x 33.7 mm - Projections not included - |
| Weight (net) | With KNB-45L: 300 g With KNB-53N: 365 g With KNB-29N: 380 g |
Receiver specifications
| Adjacent channel selectivity | 70 dB at 25 kHz 70 dB at 20 kHz 62 dB at 12.5 kHz |
| Audio output power | 500 mW with distortion less than 5% |
| Intermodulation | 67 dB |
| Sensitivity - EIA 12 dB SINAD | 0.25 µV at 25 kHz 0.25 µV at 20 kHz 0.28 µV at 12.5 kHz |
| Spurious Response Rejection | 70 dB |
Transmitter specifications
| RF output power (High / Low) | 5 W / 1 W |
| FM noise (EIA) | 45 dB at 25 kHz 45 dB at 25 kHz 40 dB at 12.5 kHz |
| Modulation distortion | Less than 3% |
| Modulation limitation | ± 5.0 kHz at 25 kHz ± 4.0 kHz at 20 kHz ± 2.5 kHz at 12.5 kHz |
| Spurious emission (EN) | -36 dBm ≤ 1 GHz -30 dBm & gt; 1 GHz |
