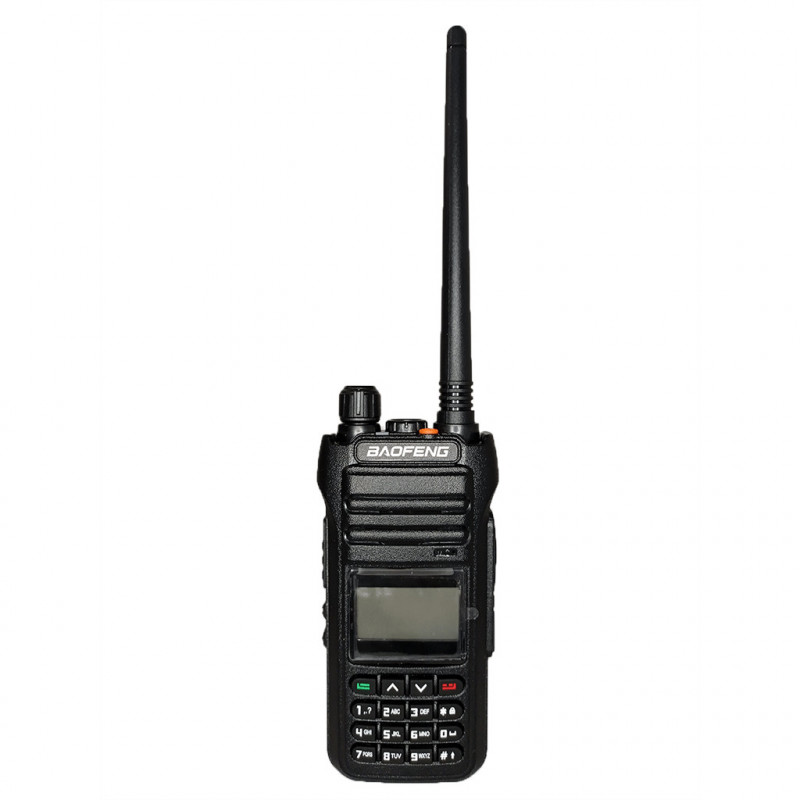

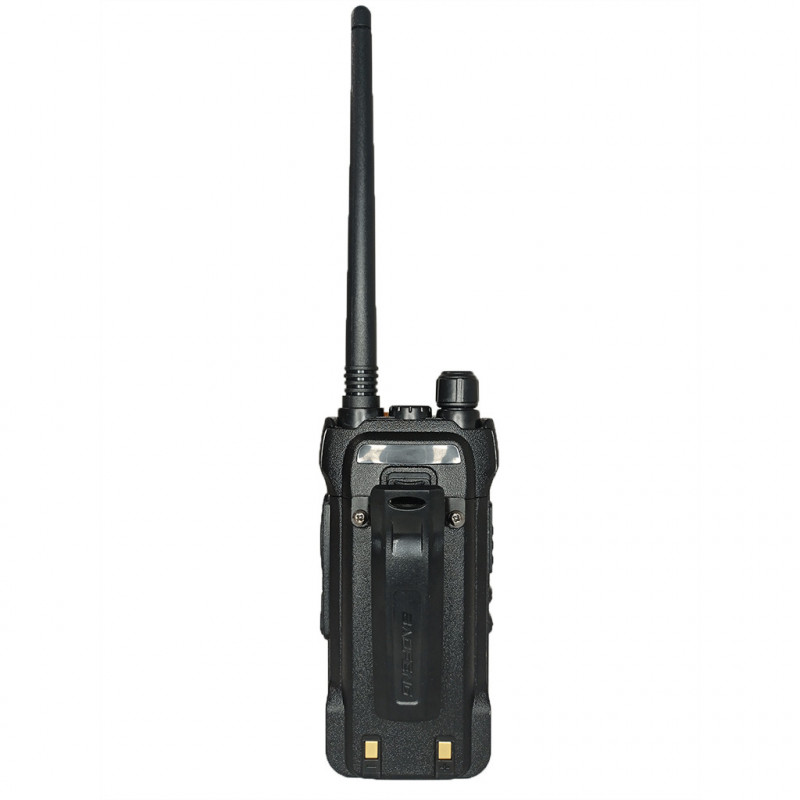

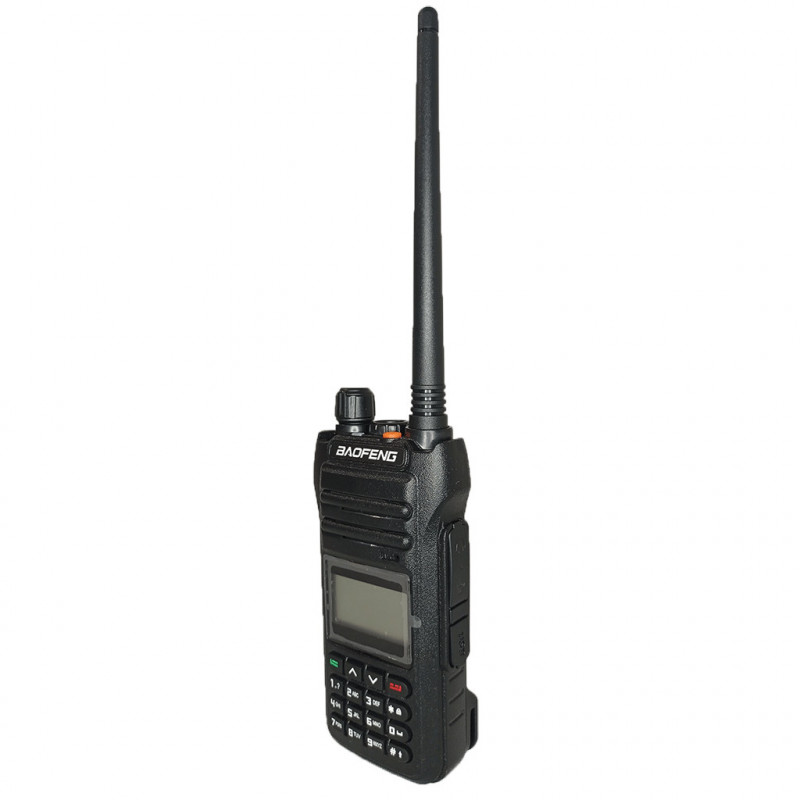

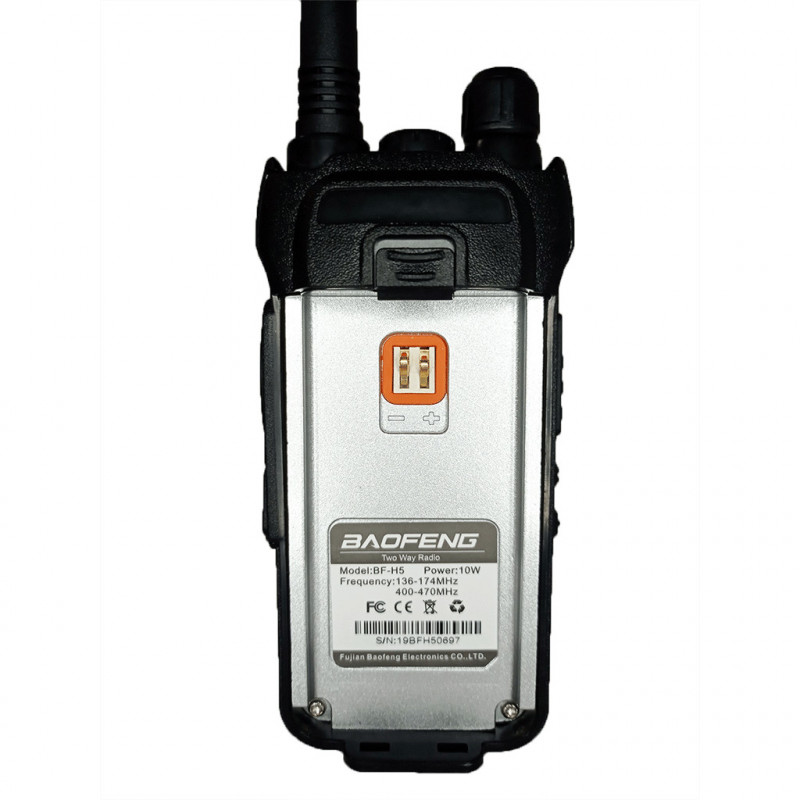

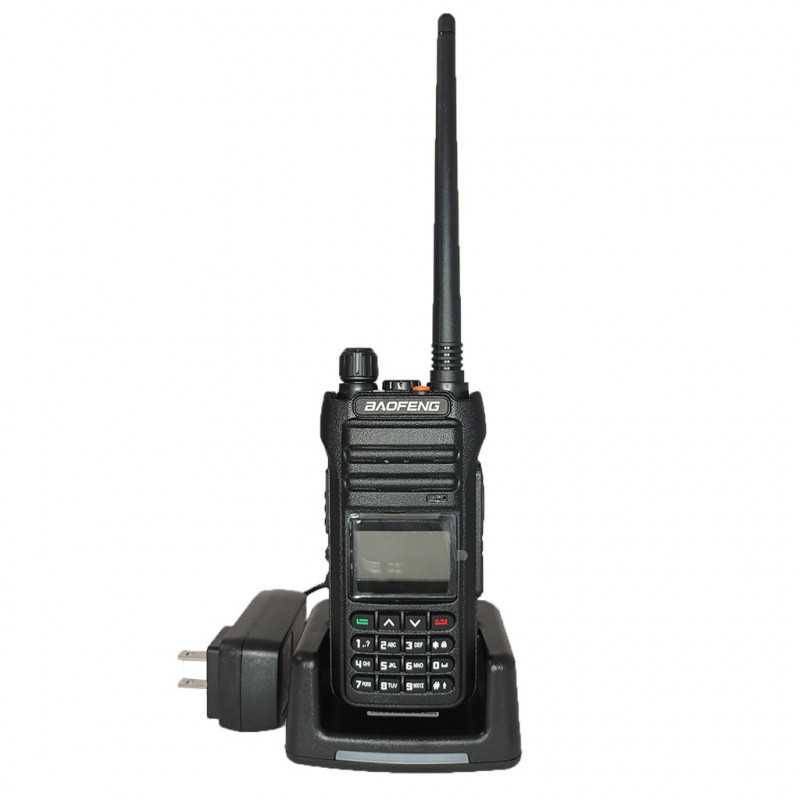

BF-H5 Dual Band Radio

Marca: Baofeng

Baofeng Bf-H5 Dual Band High Power Portable Dual Display Transceiver 10W Two Way Radio Walkie Talkie



Política de seguridad (editar con el módulo Información de seguridad y confianza para el cliente)



Política de envío (editar con el módulo Información de seguridad y confianza para el cliente)



Política de devolución (editar con el módulo Información de seguridad y confianza para el cliente)

CTCSS / CDCSS
The unique CTCSS /CDCSS encoding & decoding function can avoid listening to the same channel on the irrelevant call.
Chinese and English voice broadcast channel, functional operation and charging tips
Designed for the dim light of the environment design, walkie talkie in the user's operation, can issue a variety of sound prompt operation state, can accurately issue channel broadcast in English and Chinese prompts, voice prompt power status. Support Chinese and English language.
Launch timing function
This function is to prevent any caller occupied the channel time is too long, the timer to limit the number of times each time to launch the walkie talkie, limiting the user timeout launch.
Busy channel lock
This machine can store up to 16 channels. The rotating channel switch selects the channel, counter clockwise to decrease the value of the channel, and rotates clockwise to increase the channel value. If the rotation to the empty channel without any information, a "beep" sound space frequency tone alert.
Automatic power saving function
When the channel is idle or does not carry out any operation (12 seconds), the battery energy saving function is automatically turned on, and the walkie talkie starts to switch the receiving circuit alternately at a certain time, which has achieved the purpose of automatic power saving and energy saving. The time ratio of the switch circuit can be set by programming software.
computer programming
The data can be connected with the computer through the data line to the interphone frequency data, the function parameter and the signal and so on carries on the programming.
Sound loud
Using 40mm large-caliber speakers, with professional-grade audio amplifier circuit design, issued a loud voice to meet the complex needs of the hearing environment

General specification

frequency range 400-480MHz
channel capacity 128
Channel spacing 25.0kHz / 12.5kHz
Frequency stability ±1.5ppm
working temperature -20℃ ~ +60℃
Antenna impedance 50Ω
working voltage 3.7V
Dimensions (L * w * h) 128×60×37mm
Weight (with battery and antenna) 214g
Battery 1800mAh (Lithium ion battery)

Acceptance specification

Receiving sensitivity 0.15μV / 0.18μV
Adjacent channel selectivity 65dB / 55dB
Intermodulation Rejection 55dB
Spurious Response ≥60dB
Signal to noise ratio 40dB / 35dB
Rated audio output power ≥600mW
Rated audio distortion ≤5%

Launch specifications

Transmitting power ≤5W
modulation mode 16KΦF3E / 8KΦF3E
Modulation limit ≤5kHz / ±2.5kHz
FM distortion ≤5%
residual FM -45dB / -35dB
Adjacent channel power -65dB / -55dB
Stray and harmonic ≤-36dBm
BFH5

Data sheet

Banda
(136Mhz - 174Mhz) y (400Mhz - 470Mhz)
Canales
128 Canales
