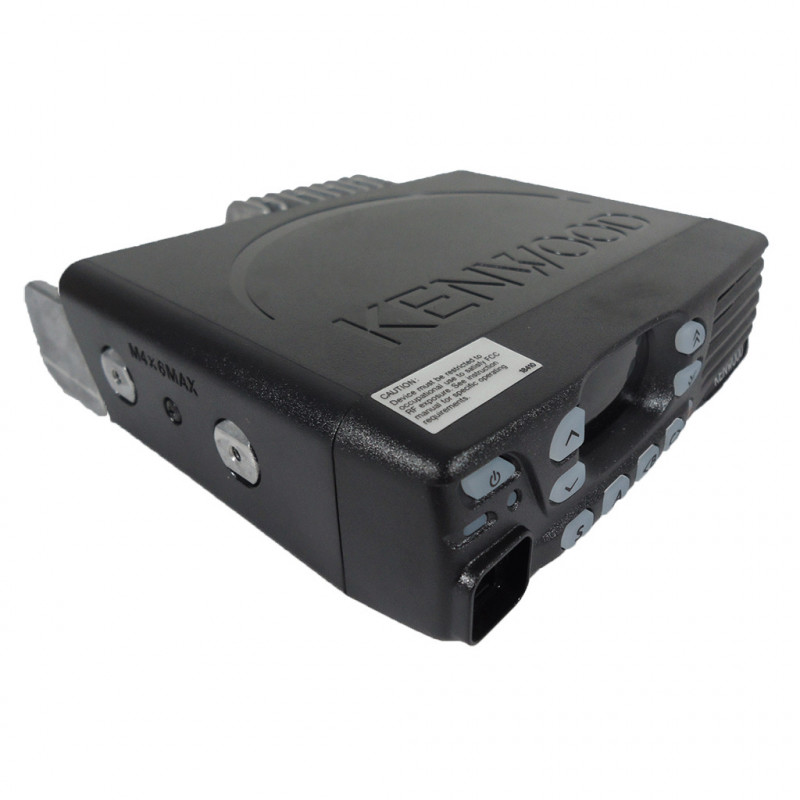

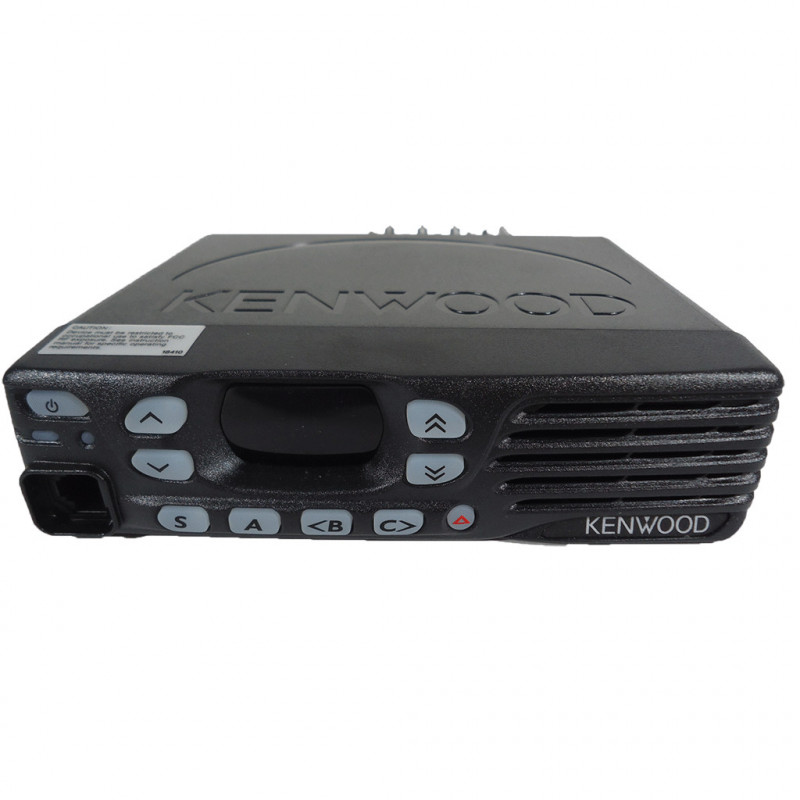

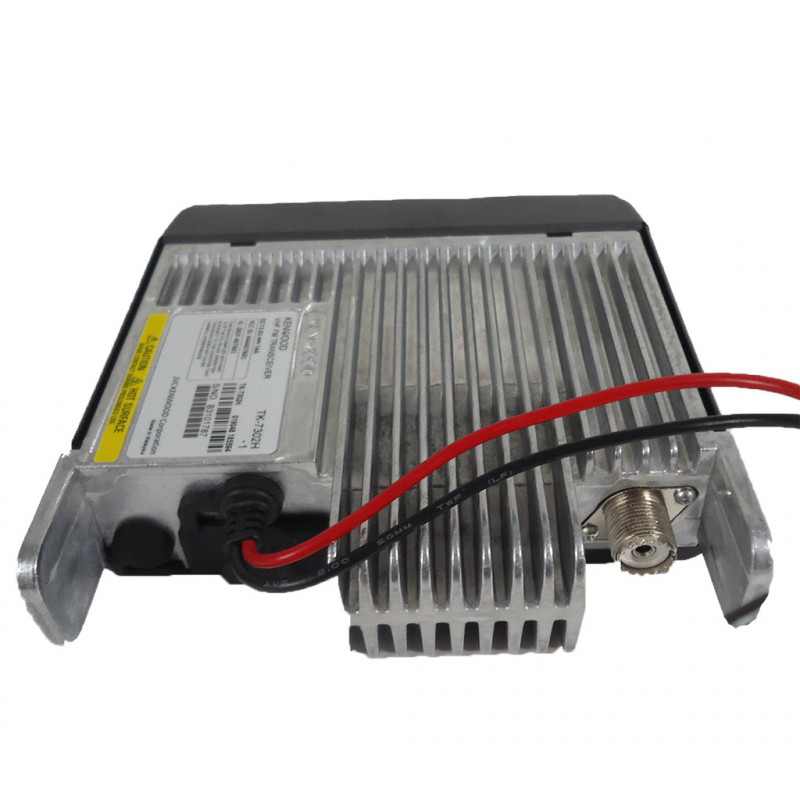

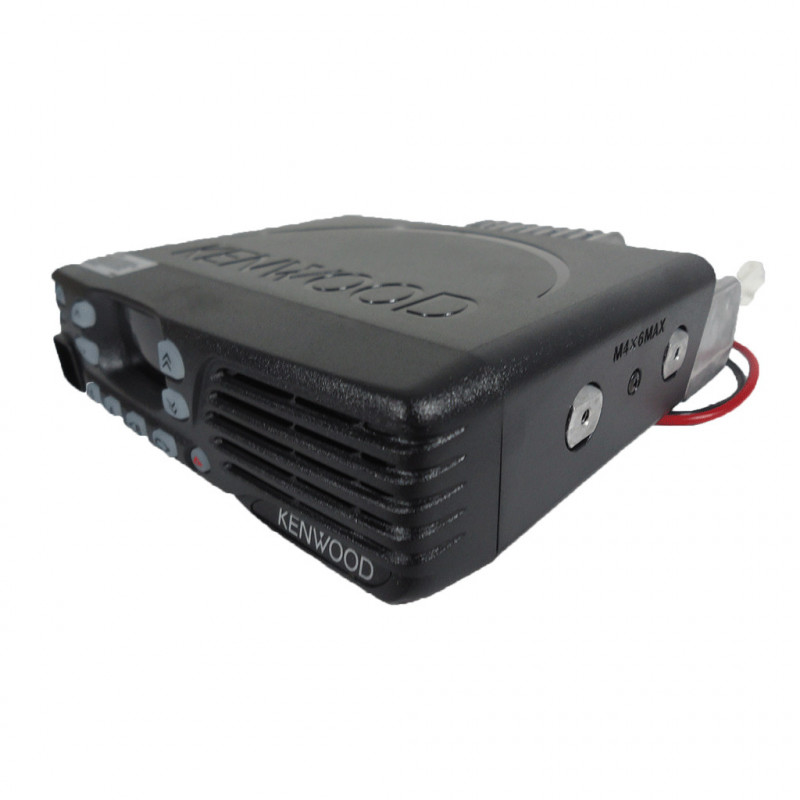

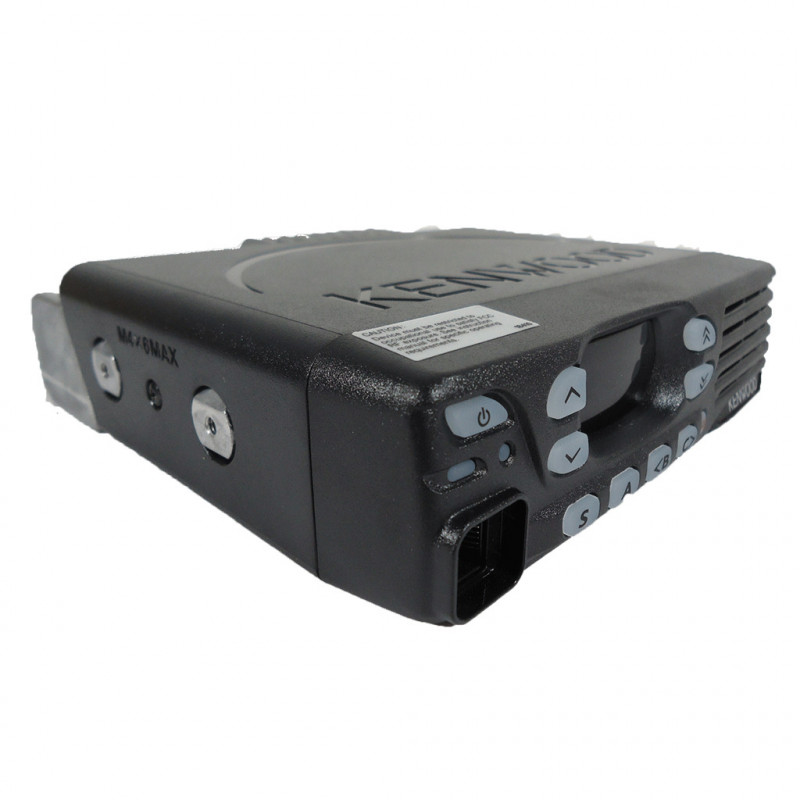

TK-7302H VHF Radio
Featured Features
- Frequency range: 136-174 MHz
- 16 channels
- Output power 25W
- Emergency Mode
- DTMF, QT and DQT signaling
- PTT ID and Electronic Serial Number
- Voice guide in eight languages
- MDC-1200 signaling (requires license)
- D-Sub Interface Connector
- Requires optional Microphone
Política de seguridad (editar con el módulo Información de seguridad y confianza para el cliente)
Política de envío (editar con el módulo Información de seguridad y confianza para el cliente)
Política de devolución (editar con el módulo Información de seguridad y confianza para el cliente)
Featured Features
| Frequency range: 136-174 MHz |
| 16 channels |
| Output power 25W |
| Emergency Mode |
| DTMF, QT and DQT signaling |
| PTT ID and Electronic Serial Number |
| Voice guide in eight languages |
| MDC-1200 signaling (requires license) |
| D-Sub Interface Connector |
| Requires optional Microphone |

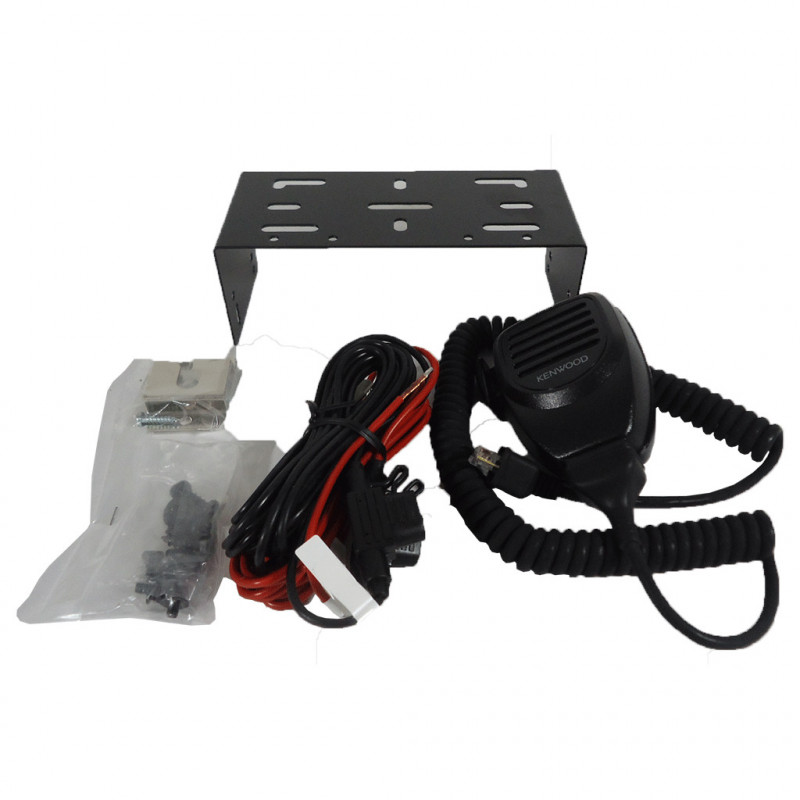

Supplied accessories
| Cable D.C. | Yes |
| Fuse | Yes, 10Amp |
| Instruction Manual | Yes, English, Spanish, French, German, Italian, Dutch and Turkish |
| Mounting bracket | Yes |
| Fixing screw | Yes |
PMR general characteristics
| Blue LED | Yes |
| Tri-color LED (Red, Orange, Green) | Yes |
| Signaling 5-Tone formats | ZVEI, ZVEI2, CCIR, EIA, EEA and "Kenwood" in 5-Tone standard. 2-Stream 5-Tone, 3-Stream 5-Tone plus formats up to 8-Tone |
| Block busy channel | Yes |
| Numeric display | 2 Characters |
| Compact design | Yes |
| Audio Compressor | Yes |
| Accessory connector DB-15 | Yes, 8 contacts can be programmed individually |
| DTMF PTT ID | Yes |
| Ease of use of operation | Yes |
| Emergency Key Function | Yes |
| Emergency Button | Yes |
| Kenwood Enhanced Audio | Yes |
| FleetSync | Yes |
| Front mount speaker | Yes |
| Compatible with GPS | Yes |
| Horn / Pager Alert Functions | Yes |
| Independent functions per channel | Compressor, Wide / Medium / Narrow and Scrambler |
| Kenwood ESN (Electronic Serial Number) | Yes |
| Key lock | Yes |
| Lone Worker Function | Yes |
| MDC-1200 | Yes |
| Minimum volume setting | Yes |
| Monitor key | Yes |
| Multiple Search Functions | Yes |
| Selectable operation tone | Yes |
| Preprogrammed status messages | Yes, Status messages are pre-programmed 2-digit codes from 10 - 99 (numbers 80 - 99 are reserved for special messages). |
| Programmable Keys Function | 9 Programmable Function Keys |
| PTT ID | Yes |
| QT (CTCSS) / DQT (digital) | Yes |
| Remote lock and unlock | Yes |
| Selective Call Functions | Yes |
| Selectable Microphone Sensitivity | Yes |
| Selectable Display Illumination | Yes |
| Talk Around | Yes |
| " Talk Back "function | Yes |
| Transmission timer | Yes |
| Transceiver Password | Yes |
| Voice Guide | Yes - The Radio Mode and Status available in Spanish, English, French, German, Italian, Dutch, Russian or Chinese |
| Voice Inversion Encryption | Yes |
| Voting function | Yes |
| Programming and Adjustment by Windows PC | Yes |
| Cable Clone Function | Yes |
FleetSync signaling specifications
| State of emergency | Yes |
| ANI Digital PTT ID | Yes |
| Selective call | Yes |
MDC1200 Signage Specifications
| Emergency Coding | Yes |
| PTT ID encoding | Yes |
| Radio Test Decoding | Yes |
| Lock / Unlock Decoding | Yes |
Options
| GPS Internal Board | Yes - NMEA 0183 V2 compatible |
| Internal Encryption Module | Yes - Available from Transcrypt on KW21 -460 |
| "Molex" interface | Via KCT-60M cable |
Applicable standards
| IP54 | Yes |
| MIL-STD 810 C / D / E / F | Si |
Technical Specifications
| Frequency range - Type E | 136-174 MHz |
| Number of channels | 16 |
| Number of Zones | 2 |
| Channel frequency spread | 38 MHz |
| Channel spacing | Wide: 25 kHz Med: 20 kHz Narrow: 12.5 kHz |
| Antenna impedance - 50 Ohm | Yes |
| Antenna Connector | BNC |
| Consumption | Standby: ≤ 0.4 A Recepation: ≤ 1.0 A Transmission: ≤ 8.0 A |
| Frequency Tolerance | ± 2,5 ppm (-30 ° C to + 60 ° C) |
| Operating temperature | -30 ° C to + 60 ° C |
| Operating voltage | 13.6 V DC ± 15% |
| PLL Increments per Channel | 2.5 kHz / 5.0 kHz / 6.25 kHz / 7.5 kHz |
| Dimensions | 160 x 43 x 122.6 mm (projections not included) |
| Weight (net) | 1.18 Kg |
Receiver specifications
| Adjacent channel selectivity | Wide / Med / Narrow: 70/70/60 dB |
| Audio output power | 4 W with less than 5% distortion |
| Intermodulation | Wide / Med / Narrow: 65 dB |
| Sensitivity - EIA 12 dB SINAD | 0.28 µV at 25 kHz 0.28 µV at 20 kHz 0.35 µV at 12.5 kHz |
| Sensitivity - EN 20 dB SINAD | -3 dBµV at 25 kHz -3 dBµV at 20 kHz -2 dBµV at 12.5 kHz |
| Spurious Response Rejection | 70 dB |
Transmitter specifications
| Radio frequency output power | 5 - 25 Watts |
| FM noise (EIA) | Wide / Med / Narrow: 45/43/40 dB |
| Modulation distortion | Less than 3% |
| Spurious emission (EN) | -36 dBm ≤ 1 GHz -30 dBm & gt; 1 GHz |
