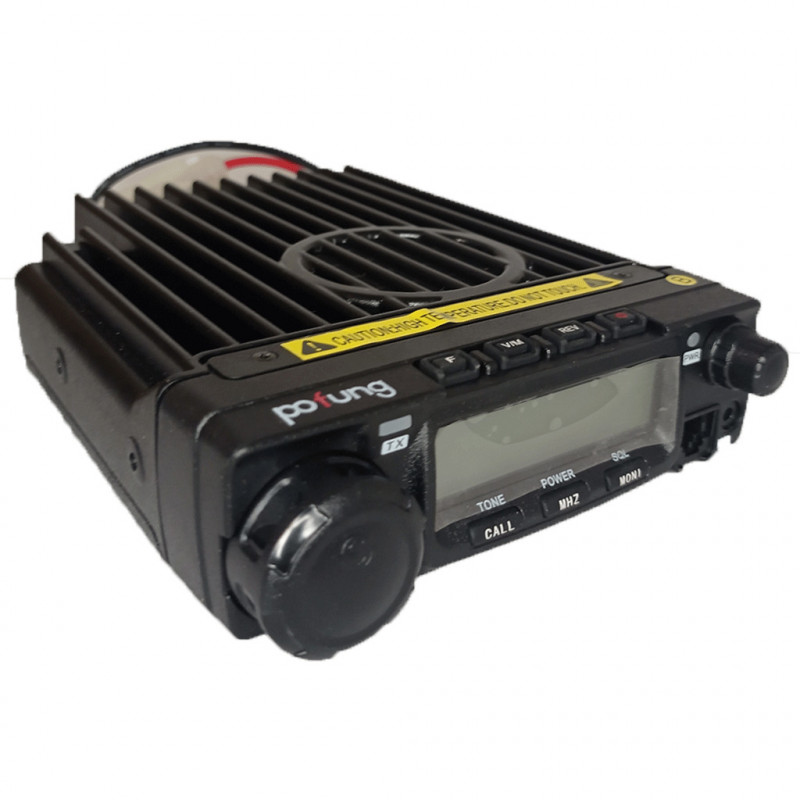

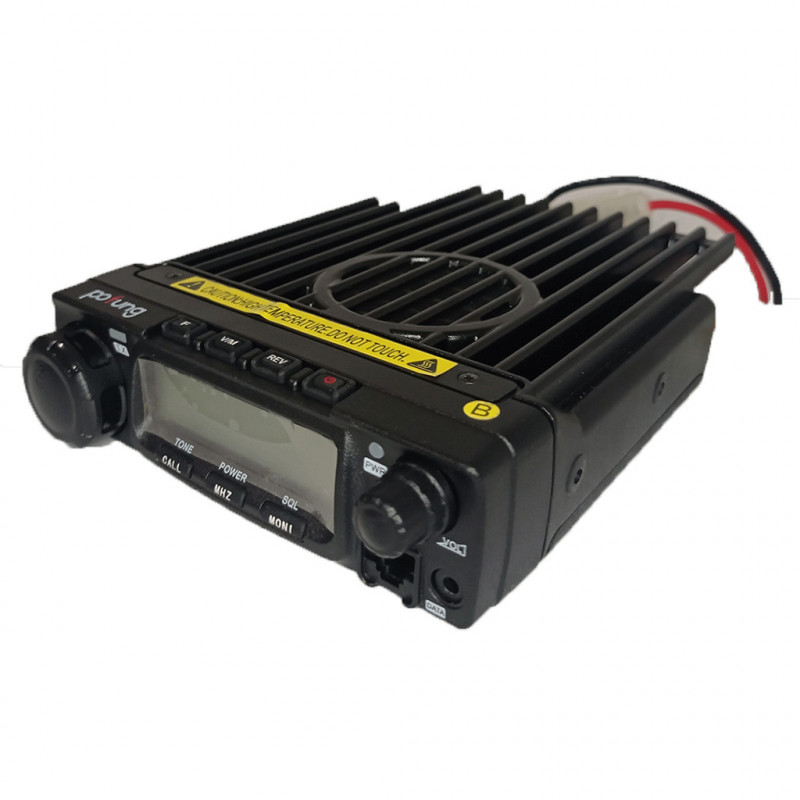

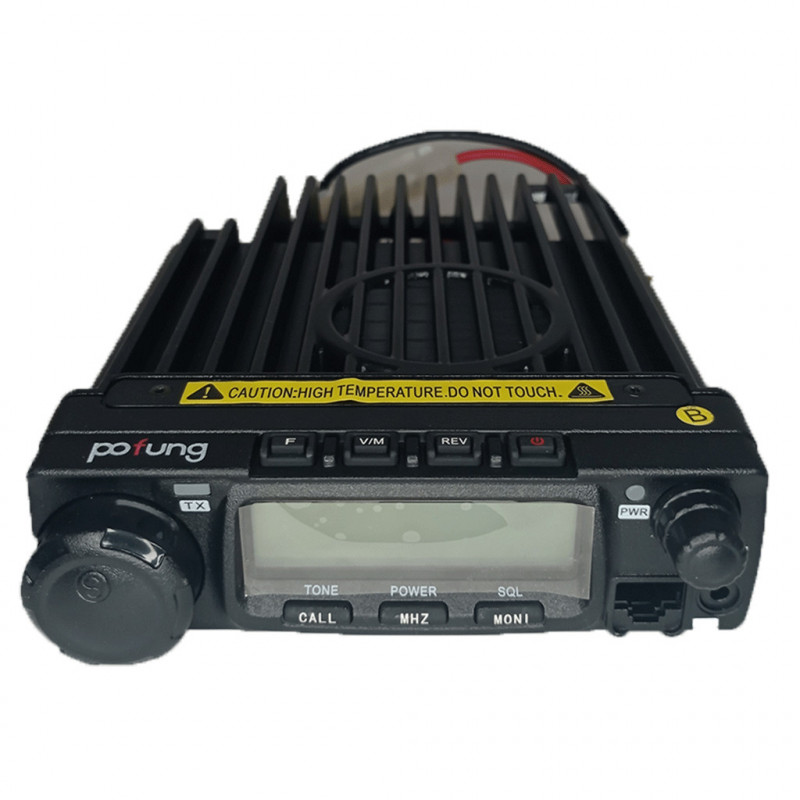

BF-9500 UHF Radio

Marca: Baofeng

CE FCC Cheap BF-9500 Mobile Radio Its cool appearance, hard case and a variety of power functions that
Meeting the needs of those motor fleets and pilots, an ideal kit for amatuer mobile radio.

The BF-9500 Mobile Radio has a nice case, robustness and stability, advanced and reliable functions, perfect and great value.



Política de seguridad (editar con el módulo Información de seguridad y confianza para el cliente)



Política de envío (editar con el módulo Información de seguridad y confianza para el cliente)



Política de devolución (editar con el módulo Información de seguridad y confianza para el cliente)

Features

  • Color: Black
  • Material: Polycarbonate and aluminum
  • 50 CTCSS and 104 DCS codes
  • Range: UHF 400 ~ 470MHz
  • 200 frequency memory channels
  • Channel spacing: 5 / 6.25 / 8.33 / 10 / 12.5 / 15/20/25/30/50 / 100KHz
  • Automatic identification DTMF / ANI / 5Tones
  • Remote function kill / stunt / activate / revive
  • Output power: 50/25 / 10W
  • Anti-theft alarm functions
  • PC programming - USB
    (requires cable - sold separately)
  • Compander
  • ANI identification emergency alarm
  • Bandwidth: 25K / 20K / 15.5K


The equipment contains:

  • 1 x Base Radius BF-9500
  • 1 x Mounting bracket
  • 1 x DTMF palm microphone
  • 1 x DC13.8 V connecting cable
  • 1 x A pack of screws
  • 1 x User Manual

Technical specifications

Frequency range 400.00- 470.00MHz (Rx / Tx)
Channel memories 200
Bandwidth 25/20 / 12,5 Khz
Frequency steps 5 / 6.25 / 8.33 / 10 / 12.5 / 15/20/25/30/50 / 100KHz
Voltage CC 13.8 V ± 15%
Frequency stability ± 2.5ppm
Operating temperature - 20 º C to +60 º C
Automatic identification in squelch CTCSS / DCS / 5Tones / 2Tones / DTMF
Antenna impedance 50 Ω
Dimension 14.5 x 4.7 x 19 cm
Weight 1200gr ; ; ;
Transmission
Power output 50/25 / 10W
Modulation (W / N Band) 16K Φ F3E / 11K Φ F3E
Maximum deviation < 5 KHz
APCR (adjacent channel) -70dB / -60dB
Audio Distortion < 5%
SNR -40dB / -36dB
Audio response + 1 ~ -3dB (0.3-3KHz) / + 1 ~ -3dB (0.3-2.55 KHz)
Spuerias and harmonicas -60dB / -60dB
Consumption in transmission 2.5 A
Reception
Sensitivity < 0.25 µ V / <0.35 µ V
Audio power 2 W
Intermodulation 65dB (W), 60dB (N)
Contiguous Channel Selectivity (W / N Band) 70dB (W), 60dB (N)
Audio Distortion 5%
FM noise 45dB, 40dB
Specifications are subject to manufacturer changes due to technological modifications.
BF9500

Data sheet

Potencia
50W
Banda
UHF (400-470Mhz)
Canales
200 channels
