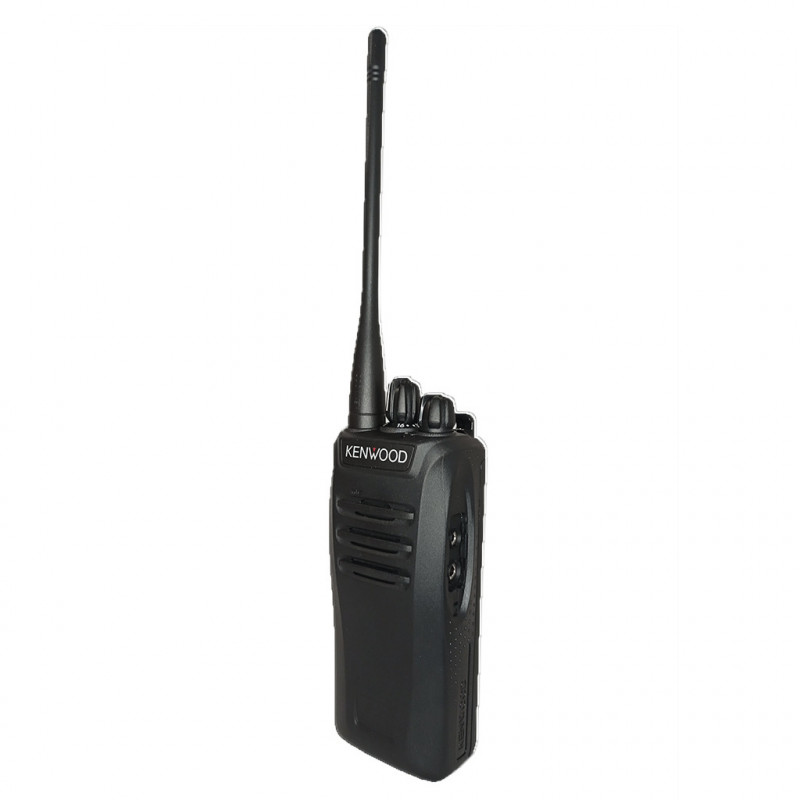

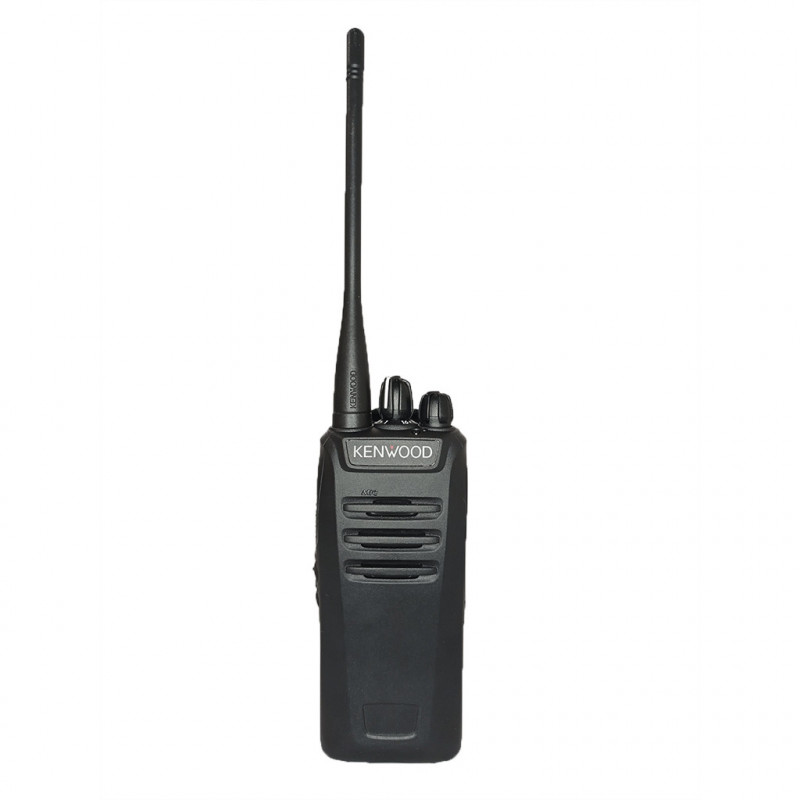

NX-240/340

NEXEDGE® VHF / UHF DIGITAL AND ANALOGUE RADIOS

The migration to digital radios is inevitable, we all know it, the question is when to make the investment. A risk? Not with NEXEDGE® NX-240/340 radios. These radios operate in analog FM and digital NXDN® modes, offering a gradual migration to a digital system. Discover the benefits of advanced digital technology, with a larger coverage area, low noise with superior audio clarity and increased security. All in a rugged, compact radio that's easy to operate, with high-power audio, and reliability.

Features

• 16 Channels by Zones, 2 Conventional Zones Indicator
• 4-Color LED (Blue / Red / Green / Orange)
• 2 Programmable Keys for use with versatile functions
• 16-position mechanical selector
• Zone and Channel Voice Announcement, Voice Activated Transmission (VOX)
• Emergency call, Disable / Kill the radio remotely
• Lone Worker Alert (programmable per channel)
• Transmission Time Limiter, Busy Channel Block
• Low Battery Alert, Battery Saver
• KPG-169D Programming Software
• Wireless Cloning, Password Protection
• Courtesy tone on release of PTT, Minimum volume, Programmable microphone sensitivity.MIL-STD 810 C / D / E / F / G
• IP-54/55 Standard Against Intrusion of Water and Dust
• Option Available for Intrinsically Safe use

• Alias-over-the-air (TX only)
• Call Alert, Individual Call and Group Call in Conference
• Status Message, Remote Monitor Roaming, Delayed entry to a call
• NXDN ESN

• FleetSync® II, MDC-1200, DTMF
• QT / DQT / 2-tone, Compander, Squelch Level

NXDN protocol

NEXEDGE radios employ NXDN®, a digital FDMA air interface with AMBE + 2 ™ voice coding technology, special and unique filtering with 4-level FSK modulation with low bit error rate (BER) even with Weak RF signal strengths.

Improved Audio Quality

AMBE + 2 ™ voice coding technology accurately reproduces the nuances of natural human speech for superior voice quality, even with the radio in use at high speeds. Additionally, the powerful 36mm diameter speaker offers up to 1 watt audio output, providing clear, crisp audio.

Maximum Performance and Ergonomic Design

RF output power is 5W for VHF (NX-240) and UHF (NX-340) models. Also, the UHF frequency coverage on the NX-340 is 70 MHz (excludes 350 MHz model). The NX-240 / 340's slim contours and ergonomic design make it comfortable to hold, and the curvature on both sides ensures a firm hold.

Analog and Digital Modes

The NX-240/340 are effectively two radios in one - analog and digital - operating at 12.5 / 25 * kHz in analog zones, and 6.25 / 12.5 kHz NXDN® in digital zones. For added convenience, a softkey can be used to switch between zones.

Conventional NXDN

Compatible with NEXEDGE® Digital Conventional Mode, this radio offers 64 RANs (Radio Access Numbers) for group calls, as well as individual calls to ensure fast communications.

NXDN Type D Trunking *

The NX-240/340 supports the NXDN® Type-D digital trunking protocol. * With this architecture, also known as distributed or decentralized trunking, all channels can function as traffic channels without the need for have a dedicated control channel. This makes it possible to develop an efficient, reliable and economical backbone system. The Type-D trunk system is suitable for users who require a small single-site trunk system.

Accessories included

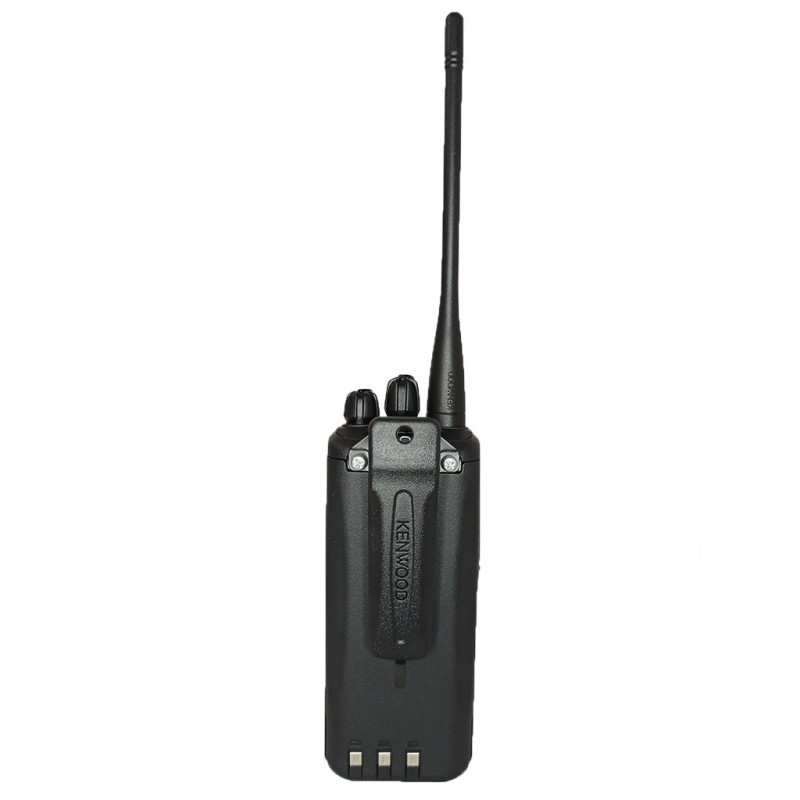

KNB-45L lithium ion battery • KSC-35S fast charger • KRA-26 VHF helical antenna (standard length) with NX-240 • KRA-27 UHF whip antenna (standard length) with NX-340 • KBH- Belt clip KBH-10
