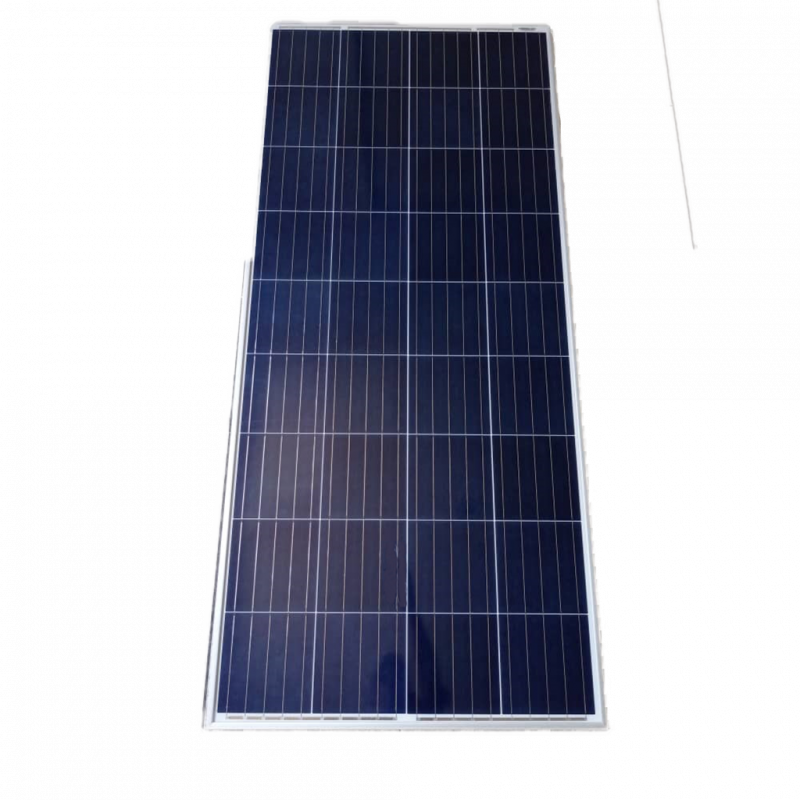

High Quality Modules

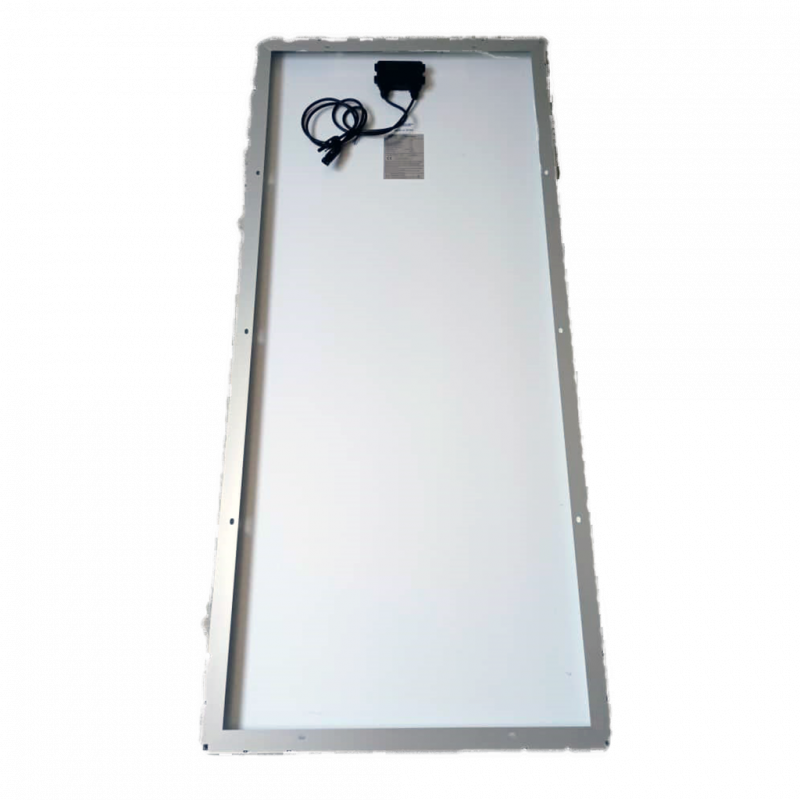

Encapsulated in transparent EVA and 4mm tempered glass. The back of the module is protected with a UV resistant TEDLAR sheet. The laminates are mounted on an anodized aluminum frame, ensuring maximum protection.

Applications:
• Radiocommunication relay stations.
• Electrification in rural areas.
• Communication systems in emergencies.
• Supply of medical equipment in rural areas.
• Water pumping systems.
• Obstruction lights for air traffic.
• Cathodic protection systems.
• Signaling of railway tracks.

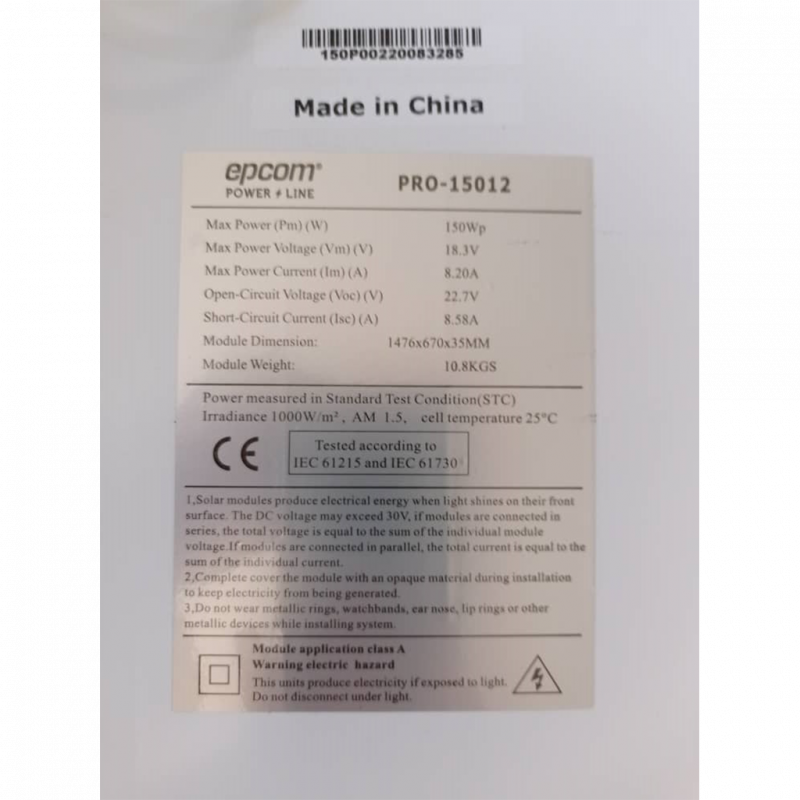

Technical Specifications

Maximum power 150 W
Voltage 18 V
Amperage 8.19 A
Open circuit voltage (Voc) 22.4 V
Short circuit current (Isc) 8.74 A
Dimensions 1470 x 660 x 35 mm
Weight 13 kg
Ambient temperature -40 to 80 ° C
Maximum system voltage 600 V
Note: Electrical specifications are indicated under an irradiance of 1000 W / m2 and a temperature of 25 ° C.

Warranty recommendations and comments.

Any claim for this product must be made within the warranty period with its invoice.

The equipment serial number must be visible, as well as the subsequent label.

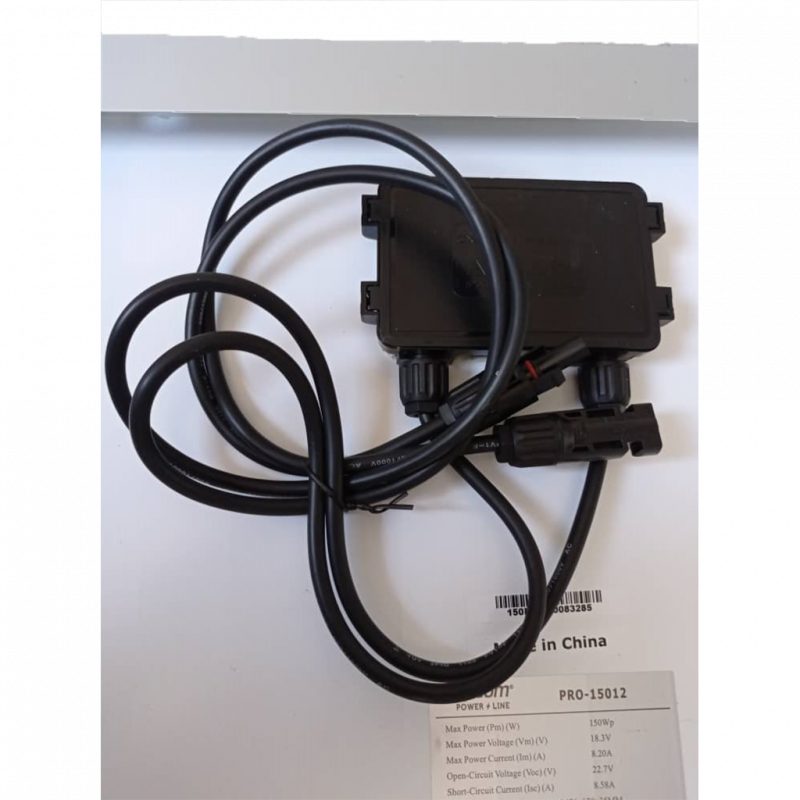

If the module's MC-4 connectors are cut off, the module instantly loses its warranty.

Do not install when an object at some point of the day casts shade, it is considered a bad installation and may be a reason for loss of warranty.

Do not mix modules of different powers in the same controller or inverter, it is considered a bad installation and may be a reason for loss of warranty.
