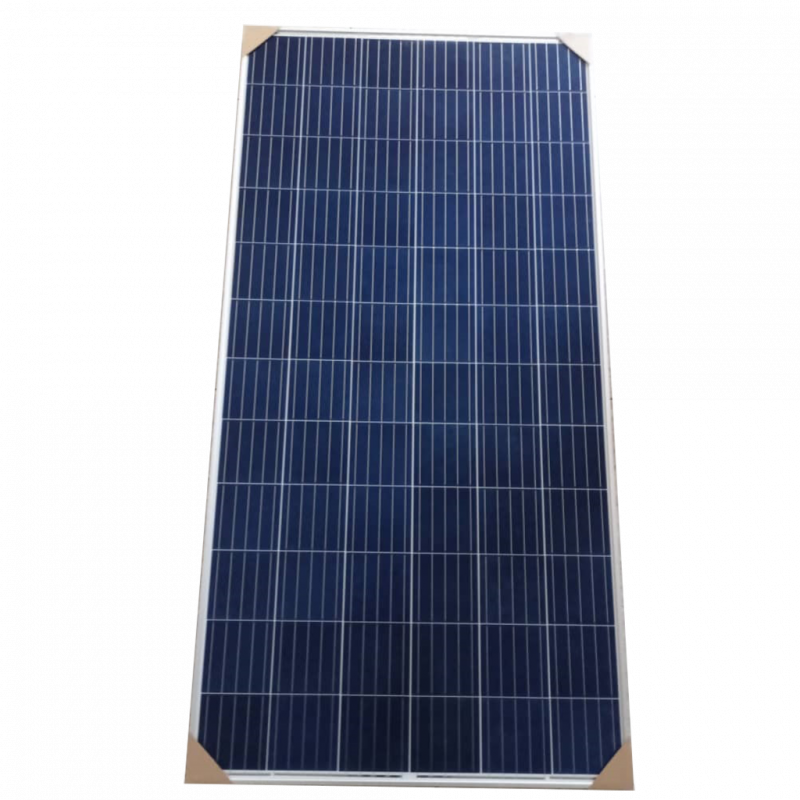

High quality cells

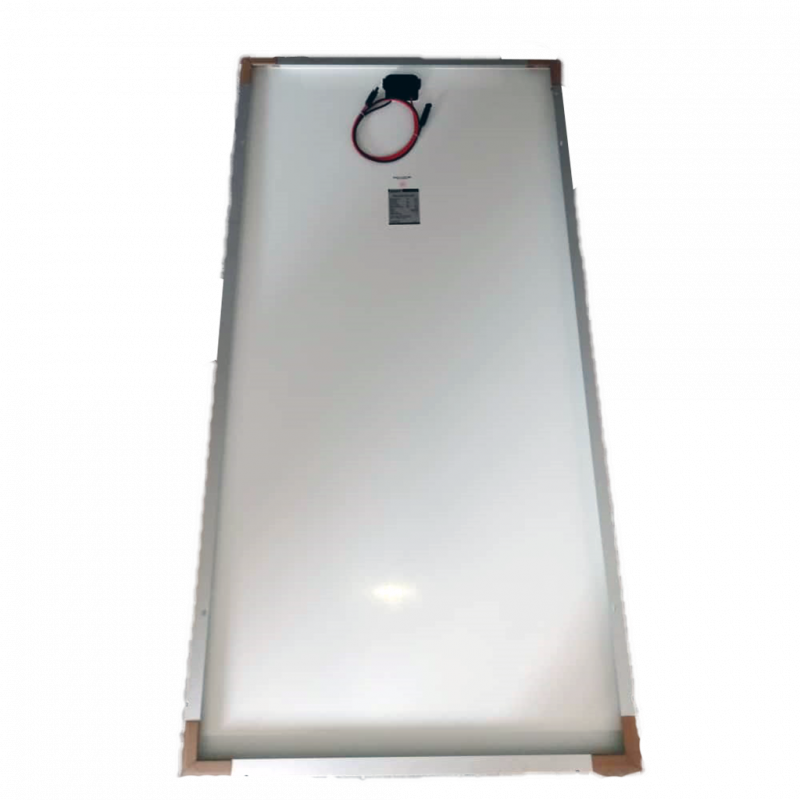

Encapsulated in transparent EVA and 4mm tempered glass. The back of the module is protected with a UV resistant TEDLAR sheet. The laminates are mounted on an anodized aluminum frame, which guarantees maximum protection.

Applications:
• Radio communication repeater stations.
• Electrification in rural areas.
• For network interconnection.
• Communication systems in emergencies.
• Supply of medical equipment in rural areas.
• Water pumping systems.
• Obstruction lights for air traffic.
• Cathodic protection systems.
• Signaling of railways.

Recommendations and comments on the guarantee.

Any claim for this product must be made within the warranty period with your invoice.

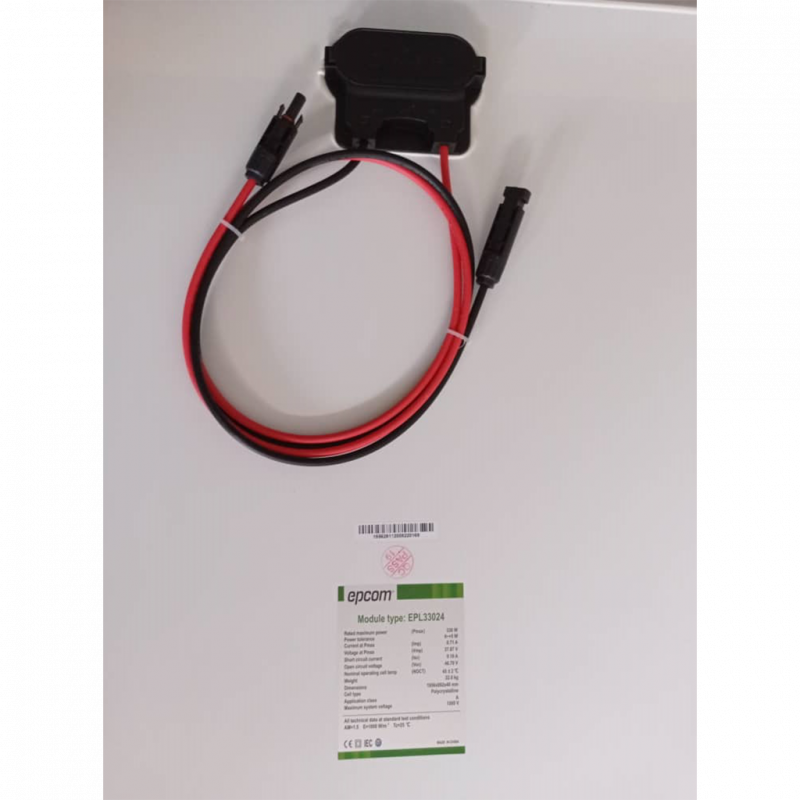

The serial number of the equipment must be visible, as well as the rear label.

If the MC-4 connectors on the module are cut, the module instantly loses its warranty.

Do not install when an object at some time of the day casts shade, it is considered a bad installation and may be a reason for loss of warranty.

Do not mix modules of different powers in the same controller or inverter, it is considered a bad installation and may be a reason for loss of warranty.

Physical specifications
Temperature coefficient Isc (%) + 0.06% / ºC
Temperature coefficient Voc (%) -0.31% / ºC
Coefficient of temperature Pm (%) -0.41% / ºC
Temperature range -45 to 85 ºC


Technical specifications
Power maximum 330 W
Voltage 37.87 V
Amperage 8.71 A
Open circuit voltage (Voc) 46.79 V
Short circuit current (Isc) 9.18A
Dimensions 1956 x 992 x 40 mm
Weight 22.8 kg
Ambient temperature 45 ºC ± 2 ºC

Note: The electrical specifications are indicated under an irradiance of 1000 W / m2 and a temperature of 25 ºC.
