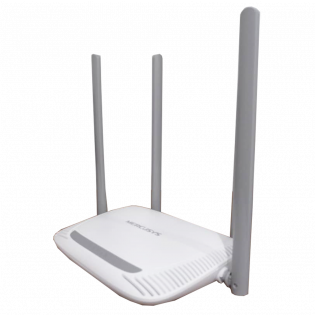

300Mbps MW325R Router

Marca: Mercusys

Up to 500 m 2 of Wi-Fi coverage

The MW325R creates an expansive wireless network that is capable of covering your home with up to 500m2 of wireless coverage. You can enjoy reliable, high-performance connections in your living room, bedroom, or even your backyard.

* Range specifications are based on performance test results. Actual performance varies based on application and environmental conditions.



Política de seguridad (editar con el módulo Información de seguridad y confianza para el cliente)



Política de envío (editar con el módulo Información de seguridad y confianza para el cliente)



Política de devolución (editar con el módulo Información de seguridad y confianza para el cliente)

Maximize your coverage Wi-Fi

300Mbps Enhanced Wireless N Router

MW325R

Up to 500 m 2 of Wi-Fi coverage

The MW325R creates an expansive wireless network that is capable of covering your home with up to 500m2 of wireless coverage. You can enjoy reliable, high-performance connections in your living room, bedroom, or even your backyard.

* Range specifications are based on performance test results. Actual performance varies based on application and environmental conditions.

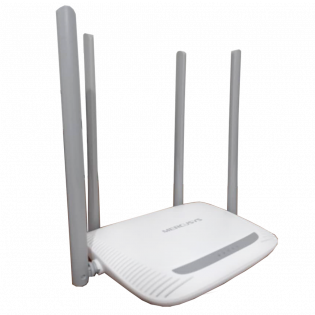

Four 5dBi antennas

By combining 2x2 MIMO technology and four high-gain antennas, the MW325R can significantly increase its signal transmission and reception capabilities. This means you don't have to worry about lag or lost connections while enjoying online games and video streaming.

Installation in three steps

Without the need for complicated setup, you can follow the step-by-step instructions on the web page to set up your MW325R in minutes.

  • 1 / Create a unique login password
  • 2 / Choose your Internet service and fill in the required information
  • 3 / Set your wireless network name (SSID) and password

Network security

Comprehensive security features help your devices form secure connections to the MW325R.

  • Parental Control
    Manage when and how connected devices can access the Internet
  • Guest network
    Keep your main network secure by creating a separate guest network
  • Advanced encryption
    WPA / WPA2 encryption standards ensure your wireless connection is safe from intruders

* Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.

Wireless
Wireless Standards
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency
2.4 - 2.5GHz
Signal Rate

11n: Up to 300Mbps (Dynamic)

11g: Up to 54Mbps (Dynamic)

11b: Up to 11Mbps (Dynamic)
Reception Sensitivity

270M: -70dBm @ 10% PER

130M: -72dBm @ 10% PER

54M: -74dBm @ 10% PER

11M: -87dBm @ 10% PER

6M: -92dBm @ 10% PER

1M: -94dBm @ 10% PER
Transmission Power
& lt; 20dBm
Wireless Security
WPA-PSK / WPA2-PSK
Wireless Functions

Enable / Disable Wireless Radio, WDS Bridge

Software
WAN Type

Dynamic IP / Static IP / PPPoE / L2TP / PPTP

Management

Access control

Local management

Remote management
DHCP

Server, DHCP Client List

Port Forwarding
Virtual server, UPnP, DMZ
Dynamic DNS
Oray
Firewall Security
IP and MAC address binding
Protocols
IPv4
Guest Network
2.4GHz guest network
Hardware
Dimensions (W X D X H)
167 x 118 x 33 mm

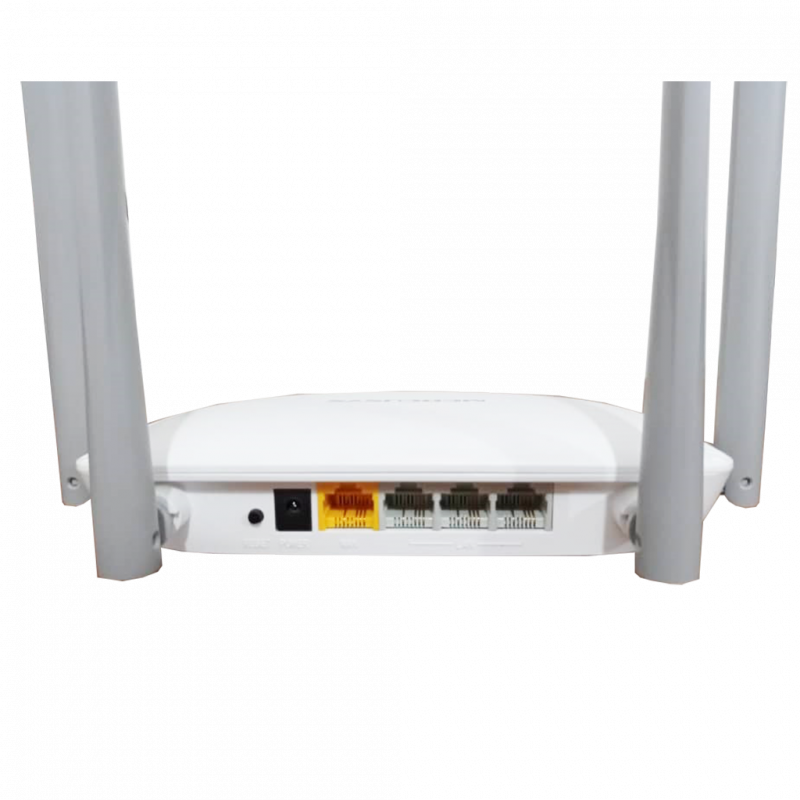

Interfaces

3 10 / 100Mbps LAN ports

1 10 / 100Mbps WAN port
Button
Reset button
External Power Supply
5VDC / 0.6A
Antenna Type
4 x 5dBi fixed omni directional antennas
Others
Certifications
CE, ROHS
Package Contents

300Mbps Enhanced Wireless N Router

MW325R

Power adapter

Quick installation guide

RJ45 Ethernet cable

Environment

Operating temperature: 0⁰C ~ 40⁰C (32⁰F ~ 104⁰F)

Storage temperature: -40⁰C ~ 70⁰C (-40⁰F ~ 158⁰F)

Operating humidity: 10% ~ 90%, non-condensing

Storage humidity: 5% ~ 90%, non-condensing
NM325R(EU)

Specific References

New

Download

Hoja de Datos - MW325R

size (1.81MB)
