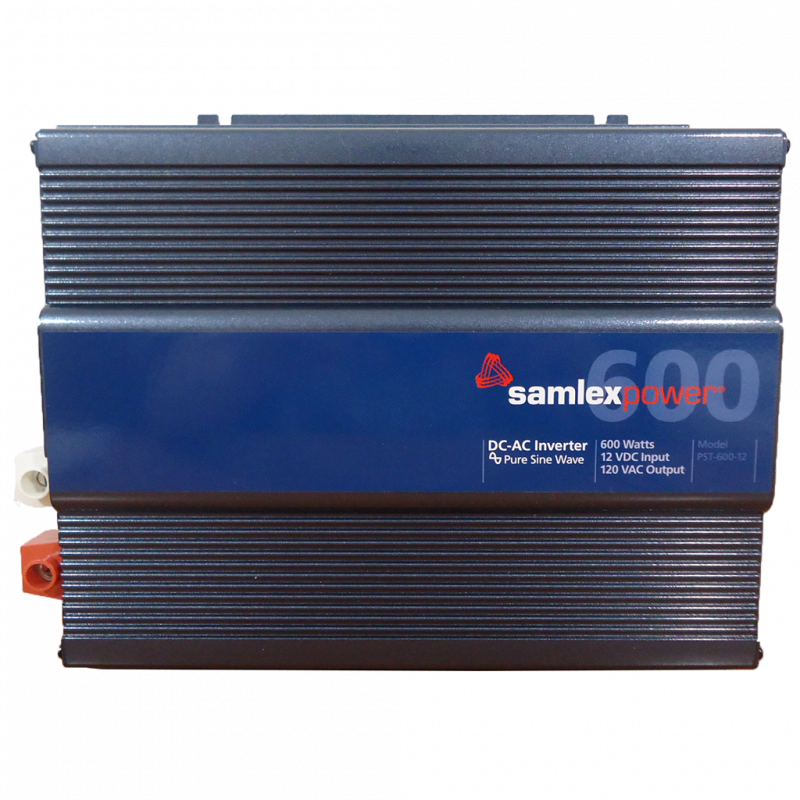

12V to 120V Inverter 600w Pure Sine Wave

Marca: Samlex Power

This high efficiency DC-AC inverter converts 12 Volts DC to 600 Watts of pure sine-wave AC power at 120 Volts, 60 Hz. Features include built-in electronic GFCI, overload protection, low battery alarm / shut down, low idle power draw. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel. Safety certified to UL standards.



Política de seguridad (editar con el módulo Información de seguridad y confianza para el cliente)



Política de envío (editar con el módulo Información de seguridad y confianza para el cliente)



Política de devolución (editar con el módulo Información de seguridad y confianza para el cliente)

This high efficiency DC-AC inverter converts 12 Volts DC to 600 Watts of pure sine-wave AC power at 120 Volts, 60 Hz. Features include built-in electronic GFCI, overload protection, low battery alarm / shut down, low idle power draw. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel. Safety certified to UL standards.

  • High efficiency
  • Temperature controlled cooling fan – reduces energy consumption
  • Low interference Wide operating DC input range: 10.7 - 16.5 VDC
  • Commercial grade design suitable for heavy duty loads, long periods of continuous operation & for emergency back up
  • UPC – Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit
  • Low idle power draw

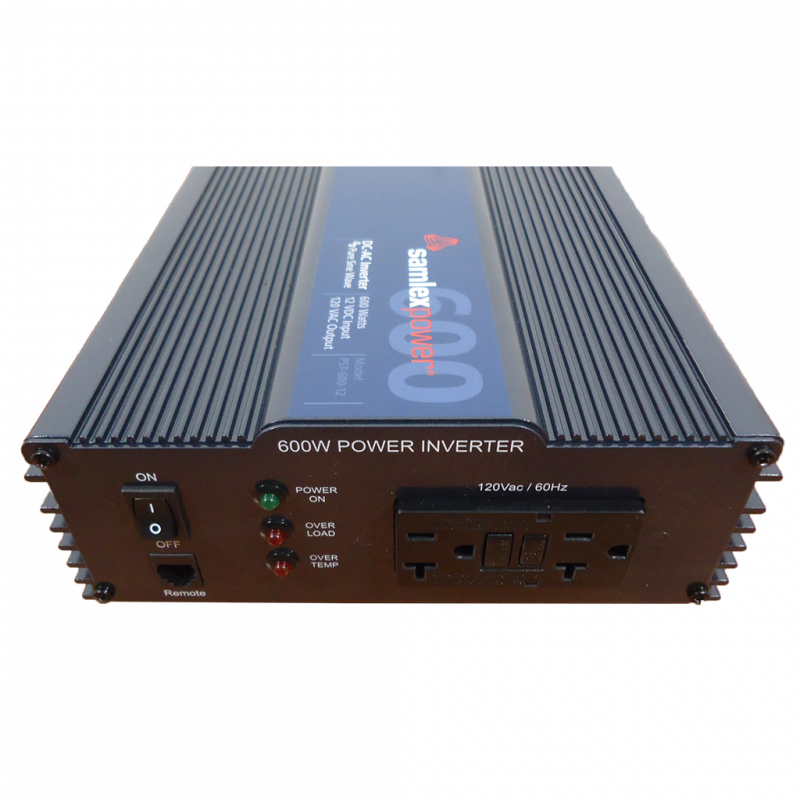

  • Dual GFCI protected AC outlets
  • Optional remote control (sold separately): Model RC-15A
  • Safety certified to UL standards, FCC compliant
  • Remote Input - Turn inverter ON or OFF with ignition start or any other Remote ON/OFF switch

Specifications

Input 12 VDC
Output 120 VAC
Watts 600
Surge 1000 Watts
Remote Control RC-15A sold separately
Weight 5.9 (lbs)
Weight 2.7 (kg)
Dimensions 9.37 x 10.87 x 3.23 (in)
Dimensions 238 x 276.2 x 82 (mm)
Safety ETL to UL Standard


Applications

  • Service vehicles
  • Mobile Offices
  • Boats
  • Recreation Vehicles, Camping
  • Telecommunication
  • Field work / Construction sites
  • Solar power systems
  • Emergency backup power
  • Home electronics: TV, VCR, video games
  • Computers, printers

PST60012

Specific References

Download

Hoja de Datos -PST-600-12

size (536.26k)

Manual de Usuario - PST-600-12

size (6.03M)
